ANSI/ASME B16.10 Wafer Dual Plate Check Valves Specifications:

Size 25mm to 900mm
Pressure Rating ASME 150# to 2500#
Materials Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard API 6D, API 594, MESC SPE 77 / 133
Pressure / Temperature Rating ASME B 16.34
Test (Inspection) Standard API 598, API 6D, ISO 5208 MESCSPE 77/133, ISO 15848-1&2 Bs6364
Construction Details Dual Plate, Soft and Metal Seated
End Connection Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
Operator / Actuator Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Dimensions of ANSI/ASME B16.10 Wafer Dual Plate Check Valve

PW – Wafer Type – ASME Class 150

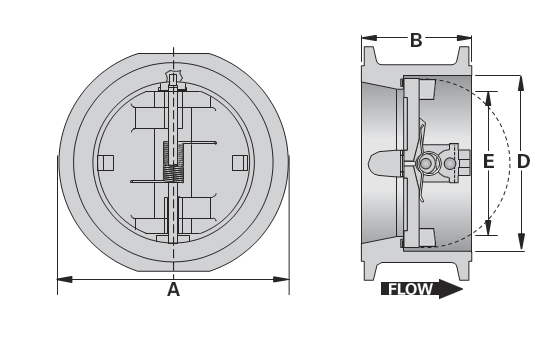

Wafer Dual Plate Check Valves
SIZE DIMENSIONS STUD DETAILS END FACING EYE BOLT HOLE SIZE (1)
A B D E No. Diameter RFStud Length
NPS DN in mm in mm in mm in mm in mm in mm in mm
2" 50 4.13 105 2.38 60 2.38 60 0.00 0 4 0.63 16 5.75 146 RF – –
21/2" 65 4.88 124 2.63 67 2.88 73 1.05 27 4 0.63 16 6.25 159 RF – –
3" 80 5.38 137 2.88 73 2.88 73 1.68 43 4 0.63 16 6.75 171 RF – –
4" 100 6.88 175 2.88 73 4.50 114 3.37 85 8 0.63 16 6.75 171 RF – –
5" 125 7.75 197 3.38 86 5.56 141 4.42 112 8 0.75 19 7.50 191 RF – –
6" 150 8.75 222 3.88 98 6.63 168 5.62 143 8 0.75 19 8.00 203 RF 0.50 13
8" 200 11.00 279 5.00 127 8.63 219 7.35 187 8 0.75 19 9.50 241 RF 0.50 13
10" 250 13.38 340 5.75 146 10.75 273 9.45 240 12 0.88 22 10.50 267 RF 0.50 13
12" 300 16.13 410 7.13 181 12.75 324 11.15 283 12 0.88 22 12.25 311 RF 0.75 19
14" 350 17.75 451 7.25 184 14.00 356 12.23 311 12 1.00 25 12.75 324 RF 0.75 19
16" 400 20.25 514 7.50 191 16.00 406 13.99 355 16 1.13 29 13.25 337 RF 1.00 25
18" 450 21.63 549 8.00 203 18.00 457 15.95 405 16 1.13 29 14.25 362 RF 1.00 25
20" 500 23.88 606 8.63 219 20.00 508 17.78 452 20 1.25 32 15.25 387 RF 1.00 25
24" 600 28.25 718 8.75 222 24.00 610 21.29 541 20 1.25 32 16.00 406 RF 1.00 25
26" 650 30.50 775 14.00 356 26.00 660 21.96 558 24 1.25 32 23.25 591 RF 1.00 25
28" 700 32.75 832 15.00 381 28.00 711 22.06 560 28 1.25 32 24.50 622 RF 1.00 25
30" 750 34.75 883 12.00 305 30.00 762 27.80 706 28 1.25 32 21.75 552 RF 1.00 25
32" 800 37.00 940 14.00 356 32.00 813 29.25 743 28 1.50 38 24.75 629 RF 1.00 25
36" 900 41.25 1048 14.50 368 36.00 914 33.40 848 32 1.50 38 26.00 660 RF 1.00 25
40" 1000 45.75 1162 17.00 432 40.00 1016 37.56 954 36 1.50 38 28.50 724 RF 1.50 38
42" 1050 48.00 1219 17.00 432 42.00 1067 39.20 996 36 1.50 38 29.00 737 RF 1.50 38
48" 1200 54.50 1384 20.63 524 48.00 1219 43.06 1094 44 1.50 38 31.00 787 RF 1.50 38
54" 1350 61.00 1549 23.25 591 54.00 1372 50.44 1281 44 1.75 44 35.75 908 RF 1.50 38
60" 1500 67.50 1715 26.00 660 60.00 1524 55.68 1414 52 1.75 44 38.75 984 RF 1.50 38

PW – Wafer Valves – ASME Class 300

SIZE DIMENSIONS STUD DETAILS END FACING EYE BOLT HOLE SIZE (1)
A B D E No. Diameter RFStud Length
NPS DN in mm in mm in mm in mm in mm in mm in mm
2" 50 4.38 111 2.38 60 2.38 60 0.00 0 8 0.63 16 6.00 152 RF – –
21/2" 65 5.13 130 2.63 67 2.88 73 1.19 30 8 0.75 19 6.75 171 RF – –
3" 80 5.88 149 2.88 73 2.91 74 1.90 48 8 0.75 19 7.25 184 RF – –
4" 100 7.13 181 2.88 73 4.50 114 3.37 85 8 0.75 19 7.50 191 RF – –
5" 125 8.50 216 3.38 86 5.56 141 4.42 112 8 0.75 19 8.25 210 RF – –
6" 150 9.88 251 3.88 98 6.63 168 5.47 139 12 0.75 19 9.00 229 RF 0.50 13
8" 200 12.13 308 5.00 127 8.63 219 7.35 187 12 0.88 22 10.75 273 RF 0.50 13
10" 250 14.25 362 5.75 146 10.75 273 9.45 240 16 1.00 25 12.25 311 RF 0.50 13
12" 300 16.63 422 7.13 181 12.75 324 11.15 283 16 1.13 29 14.25 362 RF 0.75 19
14" 350 19.13 486 8.75 222 14.00 356 12.27 312 20 1.13 29 16.00 406 RF 0.75 19
16" 400 21.25 540 9.13 232 16.00 406 14.13 359 20 1.25 32 17.00 432 RF 1.00 25
18" 450 23.50 597 10.38 264 18.00 457 16.44 418 24 1.25 32 18.50 470 RF 1.00 25
20" 500 25.75 654 11.50 292 20.00 508 17.81 452 24 1.25 32 20.00 508 RF 1.00 25
24" 600 30.50 775 12.50 318 24.00 610 21.87 555 24 1.50 38 22.00 559 RF 1.00 25
26" 650 32.88 835 14.00 356 26.00 660 22.85 580 28 1.63 41 25.00 635 RF 1.00 25
28" 700 35.38 899 15.00 381 28.00 711 24.41 620 28 1.63 41 26.50 673 RF 1.00 25
30" 750 37.50 953 14.50 368 30.00 762 27.69 703 28 1.75 44 26.75 679 RF 1.00 25
32" 800 39.63 1006 16.00 406 32.00 813 28.93 735 28 1.88 48 29.00 737 RF 1.00 25
36" 900 44.00 1118 19.00 483 36.00 914 32.41 823 32 2.00 51 32.75 832 RF 1.00 25
40" 1000 43.88 1114 21.50 546 36.00 914 36.29 922 32 1.63 41 35.25 895 RF 1.50 38
42" 1050 45.88 1165 22.38 568 40.00 1016 35.99 914 32 1.63 41 36.50 927 RF 1.50 38
48" 1200 52.13 1324 24.75 629 44.00 1118 43.68 1109 32 1.88 48 40.50 1029 RF 1.50 38
54" 1350 58.75 1492 28.25 718 50.00 1270 48.65 1236 28 2.25 57 46.25 1175 RF 1.50 38
60" 1500 64.75 1645 33.00 838 56.00 1422 48.00 1219 32 2.25 57 51.75 1314 RF 1.50 38

PW – Wafer Valves – ASME Class 600

SIZE DIMENSIONS STUD DETAILS END FACING EYE BOLT HOLE SIZE (1)
A B D E No. Diameter RFStud Length RTJStud Length
NPS DN in mm in mm in mm in mm in mm in mm in mm in mm
2" 50 4.38 111 2.38 60 2.38 60 0.00 0 8 0.63 16 6.50 165 7.00 178 RF/RTJ#23 – –
3" 80 5.88 149 2.88 73 2.91 74 2.14 54 8 0.75 19 7.75 197 8.25 210 RF/RTJ#31 – –
4" 100 7.63 194 3.13 79 4.50 114 3.54 90 8 0.88 22 8.75 222 9.25 235 RF/RTJ#37 – –
6" 150 10.50 267 5.38 137 6.63 168 5.22 133 12 1.00 25 12.00 305 12.75 324 RF/RTJ#45 0.50 13
8" 200 12.63 321 6.50 165 8.63 219 6.98 177 12 1.13 29 14.25 362 14.75 375 RF/RTJ#49 0.50 13
10" 250 15.75 400 8.38 213 10.75 273 9.08 231 16 1.25 32 17.00 432 17.50 445 RF/RTJ#53 0.50 13
12" 300 18.00 457 9.00 229 12.75 324 11.32 288 20 1.25 32 17.75 451 18.25 464 RF/RTJ#57 0.75 19
14" 350 19.38 492 10.75 273 14.00 356 12.46 316 20 1.38 35 20.25 514 20.75 527 RF/RTJ#61 0.75 19
16" 400 22.25 565 12.00 305 16.00 406 12.89 327 20 1.50 38 22.25 565 22.75 578 RF/RTJ#65 1.00 25
18" 450 24.13 613 14.25 362 18.00 457 14.52 369 20 1.63 41 25.25 641 25.75 654 RF/RTJ#69 1.00 25
20" 500 26.88 683 14.50 368 20.00 508 17.06 433 24 1.63 41 26.00 660 26.75 679 RF/RTJ#73 1.00 25
24" 600 31.13 791 17.25 438 24.00 610 20.18 513 24 1.63 41 29.75 756 30.75 781 RF/RTJ#77 1.00 25
26" 650 34.13 867 18.00 457 26.00 660 21.74 552 28 1.88 48 31.75 806 32.75 832 RF/RTJ#93 1.00 25
28" 700 36.00 914 19.00 483 28.00 711 23.89 607 28 2.00 51 33.25 845 34.25 870 RF/RTJ#94 1.00 25
30" 750 38.25 972 19.88 505 30.00 762 27.88 708 28 2.00 51 34.25 870 35.25 895 RF/RTJ#95 1.00 25
32" 800 40.25 1022 21.00 533 32.00 813 27.92 709 28 2.25 57 36.25 921 37.25 946 RF/RTJ#96 1.00 25
36" 900 44.50 1130 25.00 635 36.00 914 31.47 799 28 2.50 64 41.25 1048 42.50 1080 RF/RTJ#98 1.00 25
40" 1000 45.50 1156 26.00 660 36.00 914 33.38 848 32 2.25 57 44.50 1130 – – RF 1.50 38
42" 1050 48.00 1219 27.63 702 38.00 965 36.78 934 28 2.50 64 47.25 1200 – – RF 1.50 38
48" 1200 54.75 1391 31.00 787 42.00 1067 42.25 1073 32 2.75 70 52.75 1340 – – RF 1.50 38
54" 1350 61.25 1556 35.00 889 48.00 1219 48.34 1228 32 3.00 76 59.00 1499 – – RF 1.50 38
60" 1500 68.25 1734 39.00 991 54.00 1372 45.00 1143 28 3.50 89 65.75 1670 – – RF 2.00 51
