Plug valves are deployed in a valve to regulate the flow inside it. Plug Relief Valves are generally conical or cylindrical in shape which contains two or three path ways. ACE ALLOYS LLP is a renowned Plug Valves Manufacturer, Supplier in the market. We mass produce Industrial Plug Relief Valves of all sizes and shapes which are offered at economical prices.
The stem of a device is connected to larger diameter end of a Lubricant Plug Valve which is conically subsided. We design our Non-Lubricated Plug Valve and Lift-type plug valve in both 2-way and 3-way. In the latter one, the flow of fluid from first valve can be regulated to both second and third valves.
We lend raw material for manufacturing Eccentric Plug Valves and Expanding Plug Valves from illustrious and genuine vendors. We design Steel Safety Plug Valves in all sizes and shapes keeping all the industrial requirements in view. Our Alloy Steel Plug Valves are finely finished in order to ensure dimensional accuracy and flawlessness.
Our Aluminium Plug Valves are noted for their durability, strength, and toughness. On the other hand our Brass Plug Valves and Bronze Plug Valves are employed in household natural gas lines and vacuum applications.
For further details about our goods and services, you can come across our official website. Feel free to get In touch with us whenever necessary. Place your order right now!
Lubricant Plug Valve, Non-Lubricated Plug Valve, Lift-type Plug valve, Eccentric Plug Valve, Expanding Plug Valve Dealer & Wholesaler
ANSI/ASME B16.10 Plug Valves Specifications:
| Size | 25mm to 200mm |
| Pressure Rating | ASME 150# to 2500# |
| Materials | Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconnel, Titanium Alloy & Carbon Steel with Internal CorrosionResistant Alloy (CRA) Overlay |
| Design Standard | API6D, API 599, BS 5353, MESC SPE 77/107 |
| Pressure / Temperature Rating | ASME B 16.34 |
| Test (Inspection) Standard | API 598, API 6D, MESC 77/107, ISO 5208 |
| Construction Details | Inverted Plug Pressure Balanced /Lubricated |
| End Connection | Screwed, Socket Weld, Flanged, Hub End, Butt-Weld |
| Operator / Actuator | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |
Dimensions of ANSI/ASME B16.10 Plug Valves
| Item # | Part Description | Stainless Steel | Brass |
| 1 | Body | ASTM A 479Type 316 | ASTM B 16Alloy C36000 |
| 2 | Plug* | ASTM A 479Type 316 | ASTM B 16Alloy C36000 |
| 3 | Seat** | Fluorocarbon Rubber | |
| 4 | O-Ring Seals** | Fluorocarbon Rubber | |
| 5 | Back-up Rings | PTFE | |
| 6 | Handle | Nylon 6/6 | |
| 7 | Handle Pin | 316 Stainless Steel | |
| 8 | Body Pin | 316 Stainless Steel (not shown) | |
| 9 | Retaining Ring | 316 Stainless Steel | |
| Material | Temperature Rating |
| Nitrile Rubber | -30°F to 225°F (-34°C to 107°C) |
| Fluorocarbon Rubber | -10°F to 450°F (-23°C to 232°C) |
| Highly Fluorinated Fluorocarbon Rubber | -10°F to 300°F (-23°C to 149°C) |
| Ethylene Propylene Rubber | -70°F to 275°F (-57°C to 135°C) |
 |
|||||||||||||||||

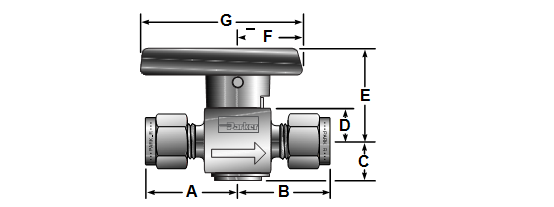

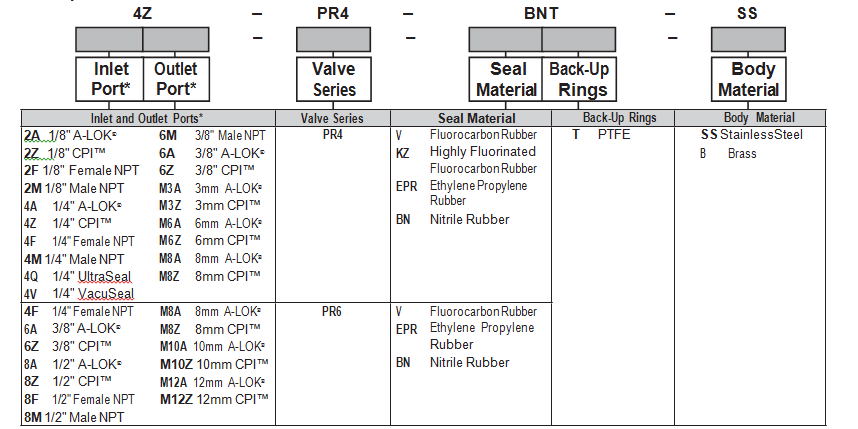

| Port Size | Basic Part # | Flow Data | End Connections | Dimensions Inches (mm) | |||||||||||||
| Orifice | Cv | XT * | |||||||||||||||
| Inch | mm | Port 1 Port 2 | A† | B† | C | D | E | F | G | ||||||||
| 2F | PR4 | 0.193 | 4.9 | 1.24 | 0.39 | 1/8" Female NPT | 0.89(22.6) | 0.89(22.6) | 0.46(11.7) | 0.38(9.7) | 1.07(27.2) | 0.75(19.1) | 1.88(47.8) | ||||
| 2M | 0.172 | 4.4 | 1.02 | 0.39 | 1/8" Male NPT | 0.77(19.6) | 0.77(19.6) | ||||||||||
| 2A | 0.093 | 2.4 | 0.22 | 0.48 | 1/8" A- | 1.00(25.4) | 1.00(25.4) | ||||||||||
| 2Z | 1/8" - | ||||||||||||||||
| 4F | 0.193 | 4.9 | 1.24 | 0.39 | 1/4" Female NPT | 1.05(26.7) | 1.05(26.7) | ||||||||||
| 4M | 0.193 | 4.9 | 1.24 | 0.39 | 1/4" Male NPT | 0.96(24.4) | 0.96(24.4) | ||||||||||
| 4A | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" A- | 1.09(27.7) | 1.09(27.7) | ||||||||||
| 4Z | 1/4" - | ||||||||||||||||
| 4Q | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" UltraSeal | 0.85(21.7) | 0.85(21.7) | ||||||||||
| 4V | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" VacuSeal | 1.02(25.9) | 1.02(25.9) | ||||||||||
| 6M | 0.193 | 4.9 | 1.24 | 0.39 | 3/8" Male NPT | 0.94(23.9) | 0.94(23.9) | ||||||||||
| 6A | 0.193 | 4.9 | 1.24 | 0.39 | 3/8" A- | 1.14(29.0) | 1.14(29.0) | ||||||||||
| 6Z | 3/8" - | ||||||||||||||||
| M3A | 0.086 | 2.2 | 0.15 | 0.48 | 3mm A- | 0.98(24.9) | 0.98(24.9) | ||||||||||
| M3Z | 3mm - | ||||||||||||||||
| M6A | 0.188 | 4.8 | 1.18 | 0.41 | 6mm A- | 1.08(27.4) | 1.08(27.4) | ||||||||||
| M6Z | 6mm - | ||||||||||||||||
| M8A | 0.193 | 4.9 | 1.24 | 0.48 | 8mm A- | 1.11(28.2) | 1.11(28.2) | ||||||||||
| M8Z | 8mm - | ||||||||||||||||
| 4F | PR6 | 0.281 | 7.1 | 3.19 | 0.28 | 1/4" Female NPT | 1.19(30.2) | 1.19(30.2) | 0.67(17.0) | 0.56(14.2) | 1.49(37.8) | 0.99(25.1) | 2.40(61.0) | ||||
| 6A | 0.281 | 7.1 | 3.19 | 0.28 | 3/8" A- | 1.33(33.8) | 1.33(33.8) | ||||||||||
| 6Z | 3/8" - | ||||||||||||||||
| 8F | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" Female NPT | 1.44(36.6) | 1.44(36.6) | ||||||||||
| 8M | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" Male NPT | 1.32(33.5) | 1.32(33.5) | ||||||||||
| 8A | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" A- | 1.44(36.6) | 1.44(36.6) | ||||||||||
| 8Z | 1/2" - | ||||||||||||||||
| M8A | 0.250 | 6.4 | 2.84 | 0.29 | 8mm A- | 1.30(33.0) | 1.30(33.0) | ||||||||||
| M8Z | 8mm - | ||||||||||||||||
| M10A | 0.281 | 7.1 | 3.19 | 0.28 | 10mm A- | 1.34(34.0) | 1.34(34.0) | ||||||||||
| M10Z | 10mm - | ||||||||||||||||
| M12A | 0.281 | 7.1 | 3.19 | 0.28 | 12mm A- | 1.47(37.3) | 1.47(37.3) | ||||||||||
| M12Z | 12mm - | ||||||||||||||||
