Flanges
ACE ALLOYS LLP is a renowned production house for Pipe Flanges, which is the material of choice for applications in the temperature range of up to about 900 Degree C, combining high strength, resistance to scaling and phase stability with resistance to subsequent aqueous corrosion. We also offer the same in different forms such as Stainless Steel Flanges, SMO 254 Flanges, Carbon Steel Flanges, Alloy Steel Flanges, Duplex Steel Flanges, Nickel Alloy Flanges.
Slip On Flanges offered by ACE ALLOYS are used because they are not sensitive to inter - granular corrosion after heating within the carbide precipitation range of 425 Degree C – 850 Degree C. It is a heat resistant, titanium stabilized, austenitic alloy that's commonly used for service in the 1000°-1600°F temperature range. A limitation is that Blind Flanges offered by ACE ALLOYS does not transfer well across a high temperature arc, so is not recommended as a welding consumable.
Flange is primarily used in applications that involve continuous and intermittent service temperatures within the carbide precipitation range of 800 Degree F – 1500 Degree F. Weld Neck Flanges is stabilized against chromium carbide formation by the addition of titanium. It was developed for use in the chromium carbide precipitation range of 1800 Degree F – 1500 Degree F (427 Degree C – 816 Degree C) where un-stabilized alloys such as 304 are subject to inter - granular attack. ACE ALLOYS also offer these Socket Weld Flanges in different sizes, shapes and designs as per customers’ specifications at affordable rates.
Flanges Dimension
| Class | Welding Flanges | Slip-on Flanges | Blind Flanges | Threaded Flanges | Lap Joint Flanges | Socket Welding Flanges |
|---|---|---|---|---|---|---|
| 150 | Up To 4” | Up To 4” | Up To 4” | Up To 4” | Up To 4” | Up To 4” |
| 300 | 3.5” | 3.5” | 3.5” | 3.5” | 3.5” | 3.5” |
| 600 | 3.5” | 3.5” | 3.5” | 3.5” | 3.5” | 3.5” |
| 900 | 2” | 2” | 2” | 2” | 2” | 2” |
| 1500 | 2” | 2” | 2” | 2” | 2” | 2” |
| 2500 | 1.5” | 1.5” | 1.5" | 1.5” | 1.5” | 1.5” |

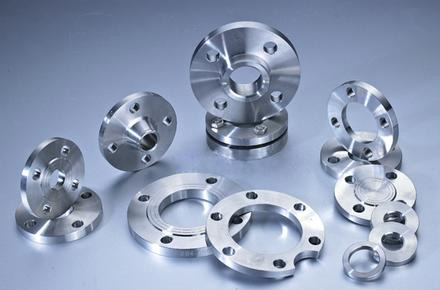

Stainless Steel Flanges
We are one of the most quality conscious producers of the wide range of Stainless Steel flanges which is meant to cater to various industrial platforms in various domains. The applications of this product can be traced to numerous industrial domains which is highly convenient for our clients.
Apart from the latest technology, we also ensure high levels of tensile and ductile strength which is highly beneficial. Our experts monitor and make sure that these products are tested for its hardness and dimensional accuracy.
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2" NB TO 48" NB |
| Designation | A 182 / A 240, SA 182 / SA 240 |
| Class | 150#, 300#, 400#, 600#, 900#, 1500# & 2500#. |
| Grade | ASTM A182 F304/ 304L/ 304H/316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ ETC. |

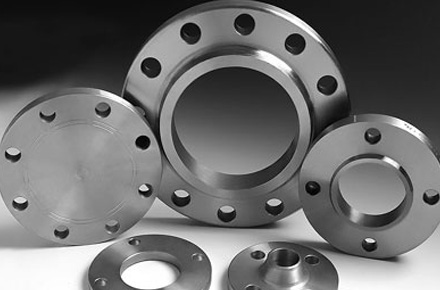

Carbon Steel Flanges
We offer the best quality of Carbon Steel Flanges which are durable and come at affordable rates. Widely appreciated for its supreme quality the range can be availed in different specifications. Topmost priority is given to customer satisfaction and hence the Carbon Steel Flanges are of international standards.
These flanges have been fabricated keeping in mind the dimensional aspect that leads to further enhancement in terms of work allotted to these products. The carbon steel used in these flanges has been mechanized in an intricate form and has set a presentable look that follows all the functions promisingly.
Silent Feature
- Optimum quality
- Abrasion resistant
- Corrosion resistant
- Highly robust
- High tensile strength
| Standards | ANSI, JIS, DIN, EN1092-1, UNI, BS4504, SABS1123, AS2129, GOST-12820 |
| Dimension | ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44 |
| Material | ASTM A105, ASME A105 ASTM A266 GR.1, GR.2, GR.3, GR.4 ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2 ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 |
| Class | 150#, 300#, 400 #, 600#, 900#, 1500# & 2500# |
| Size | 1/2” NB TO 24” NB. |
| Wall Thickness | SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS. |
| Form | Slip on Flanges – SORF, Weld neck Flanges – WNRF, Socket weld Flanges – SWRF, Blind Flanges – BLRF Lapped joint Flanges, Screwed Flanges, Long weld neck Flanges, Reducing Flanges, Spectacle Flanges, Ring joint Flanges |

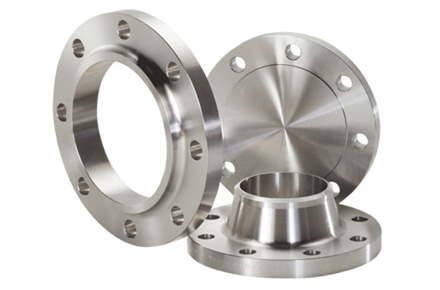

Alloy Steel Flanges
Our manufacturing arena is well known in the market that comprises of various flanges one of which is Alloy Steel flanges. They are available in variety such as weld neck, Deck flange, lap joint etc.
They appear to be slightly oxidized and have been bought by many of our customers. The machine used in the advancement of the flanges is of the latest technology. These flanges have been rated the best among our clients mainly due to the best quality of raw materials used to manufacture this product.
| Standards | ANSI Flanges, ASME Flanges, API, MSSP, BS Flanges, DIN Flanges, EN Flanges, NACE etc. |
| Dimension | 150#, 300#, 600#, 900#, 1500#, 2500#. PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Grade | ASTM / ASME A182 F1 / F5 / F9 / F11 / F22 / F91. |
| Class/ Pressure | 150#, 300#, 400 #, 600#, 900#, 1500# & 2500# |
| Size | ½” to 36″ |
| Wall Thickness | SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS. |
| Type | Slip on Flanges – SORF, Weld neck Flanges – WNRF, Socket weld Flanges – SWRF, Blind Flanges – BLRF Lapped joint Flanges, Screwed Flanges, Long weld neck Flanges, Reducing Flanges, Spectacle Flanges, Ring joint Flanges |

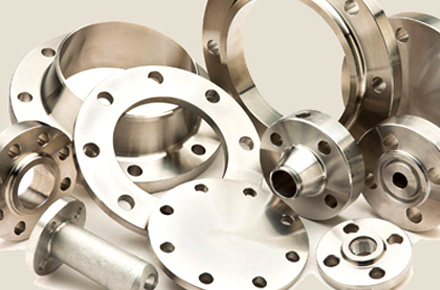

Duplex Steel Flanges
We are a most trusted name in between the topmost companies in this business, instrumental in offering high quality array of Duplex Steel Flange.
We provide different types of sites to our customers such as screwed flanges, socket weld flanges, blind flanges, reducing flanges, plate flanges, stainless steel flanges, lap joint flanges and slip on flanges.
| Standards | ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE A240, A276, A479, A789, A790, A182 (Grade F51), A923 |
| DIN Standard | ND-6,10, 16, 25, 40 Etc. |
| Materials | ASTM A182 – F 51 UNS S31803 |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| From | Slip on Flanges – SORF, Weld neck Flanges – WNRF, Socket weld Flanges – SWRF, Blind Flanges – BLRFLapped joint Flanges, Screwed Flanges, Long weld neck Flanges, Reducing Flanges, Spectacle Flanges, Ring joint Flanges |
| Size | 1/2″NB TO 24 “NB IN |
| Usage | Water System, Electric Power, Oil Field, Pipe Projects, Natural Gas, Offshore, Shipbuilding etc. |

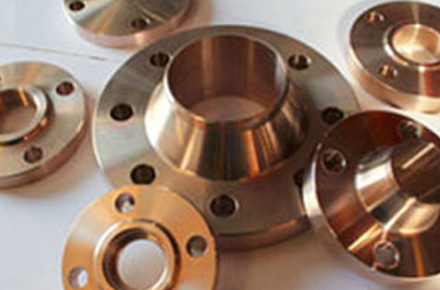

Nickel Alloy Flanges
We are dedicatedly involved in offering a wide array of Nickel Alloy Flanges. The products offered by us are manufactured using optimum grade nickel alloy and latest technology at our unit. our products are getting huge appreciation amongst our clients for their corrosion resistance nature and reliability. These products are available in a variety of grades and dimensions for our clients to choose from.
Nickel Alloy Flanges are presented by us to our customers who are manufactured by alloy. These flanges are available in different shapes and sizes and are also customized as per the need of our customers. Our products are demanded for its resistant against corrosion, long life and affordable price.
| Standards | ASTM / ASME, BS, DIN |
| Range | 15 NB to 300 NB |
| Grade | Nickel Alloy 200 (UNS No. N02200) Flanges, 2.4060, 2.4066 Nickel Alloy 200 Flanges: B 564 / SB 564 |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc. |
| Type | ASTM B 564 Nickel 200 Flanges ASME SB 564 Nickel 200 Flanges Nickel Alloy 200(UNS No. N02200) Flanges |

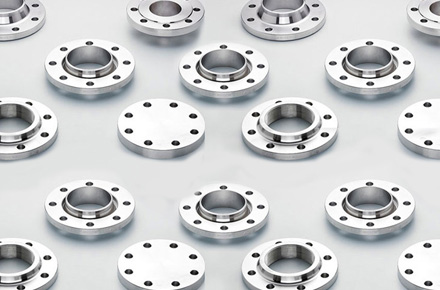

SMO 254 Flanges
Ace Alloys LLP. are manufacturers, stockiest & suppliers of 254 smo flanges, which have exceptional quality finishing and coercion for high pressure, zero defects and long life.
These 254 SMO Flanges are offered in various specifications, shapes and sizes. We meet customized requirements of our clients, Our 254 SMO Flanges is widely used in a range of applications like structural, mechanical and general engineering purposes.
| Range | 1/2''~60'' |
| Specification | ASTM A403 / ASME SB403 |
| Dimensions | ANSI/ASME B16.5, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standards | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Grades | UNS No. S31254 |
