Industrial Flange Type Dual Plate Check Valves Manufacturer & Suppliers in India

ACE ALLOYS LLP is an eminent Flanged Dual Plate Check Valves Manufacturer & Supplier based in India. We have state of the art technologically equipped ware housing facilities that use modern machinery for the fabrication of flange type dual plate check valves.

We maintain a ready to sale inventory of Stainless Steel Flange Type Dual Plate Check Valves, Alloy Steel Flanged Dual Plate Check Valves such as Brass Flange Type Dual Plate Check Valves and Bronze Flanged Dual Plate Check Valves of varying sizes and thickness that guarantees high tensile strength along with optimum and robust performance. Our products are highly commended across the industries and meet the required national and international standards.

Our quality controllers strictly supervise the fabrication of Aluminium Flange Type Dual Plate Check Valves that are designed based on varied parameters of quality before the delivery of these products to the desired locations. We are also known for our flanged type dual plate check valve that meets the national and international standards, to suit the needs of our clients in industries such as construction and marine sectors. Remember us for all your check valve needs that are high in quality and in compliance with the Industrial Flanged Dual Plate Check Valves specification.

All these products are offered at a very competitive and reasonable price to all our esteemed clientele. Take a look at our prized size chart for detailed information of all our offerings. Call or Email us for all your flange type dual plate check valves needs and help us serve you better.

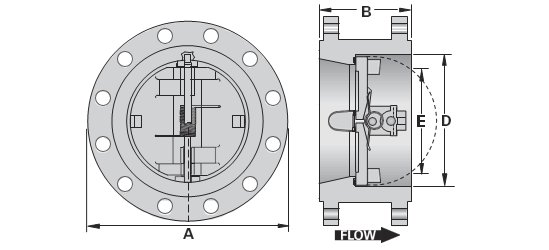

Dimensions of Flange Type Dual Plate Check Valve

Flanged Type – ASME Class 150

SIZE		Dimensions								STUD DETAILS					END FACING
		A		B		D		E		No. (1)	Diameter		RFStud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm
12"	300	19.00	483	7.13	181	12.75	324	11.15	283	12	0.88	22	4.75	121	RF
14"	350	21.00	533	7.25	184	14.00	356	12.23	311	12	1.00	25	5.25	133	RF
16"	400	23.50	597	1.50	38	16.00	406	13.99	355	16	1.00	25	5.50	140	RF
18"	450	25.00	635	8.00	203	18.00	457	15.95	405	16	1.13	29	6.00	152	RF
20"	500	27.50	699	8.63	219	20.00	508	17.78	452	20	1.13	29	6.25	159	RF
24"	600	32.00	813	8.75	222	24.00	610	21.29	541	20	1.25	32	7.00	178	RF
26"	650	34.25	870	14.00	356	26.00	660	21.96	558	24	1.25	32	8.75	222	RF
28"	700	36.50	927	15.00	381	28.00	711	22.06	560	28	1.25	32	9.00	229	RF
30"	750	38.75	984	12.00	305	30.00	762	27.80	706	28	1.25	32	9.25	235	RF
32"	800	41.75	1060	14.00	356	32.00	813	29.25	743	28	1.50	38	10.50	267	RF
36"	900	46.00	1168	14.50	368	36.00	914	33.40	848	32	1.50	38	11.25	286	RF
40"	1000	50.75	1289	17.00	432	40.00	1016	37.56	954	36	1.50	38	11.25	286	RF
42"	1050	53.00	1346	17.00	432	42.00	1067	39.20	996	36	1.50	38	11.75	298	RF
48"	1200	59.50	1511	20.63	524	48.00	1219	43.06	1094	44	1.50	38	12.50	318	RF
54"	1350	66.25	1683	23.25	591	54.00	1372	50.44	1281	44	1.75	44	14.00	356	RF
60"	1500	73.00	1854	26.00	660	60.00	1524	55.68	1414	52	1.75	44	15.00	381	RF

Flanged Type – ASME Class 300

SIZE		Dimensions								STUD DETAILS					END FACING
		A		B		D		E		No. (1)	Diameter		RFStud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm
12"	300	20.50	521	7.13	181	12.75	324	11.15	283	16	1.13	29	6.75	171	RF
14"	350	23.00	584	8.75	222	14.00	356	12.27	312	20	1.13	29	7.00	178	RF
16"	400	25.50	648	9.13	232	16.00	406	14.13	359	20	1.25	32	7.50	191	RF
18"	450	28.00	711	10.38	264	18.00	457	16.44	418	24	1.25	32	7.75	197	RF
20"	500	30.50	775	11.50	292	20.00	508	17.81	452	24	1.25	32	8.25	210	RF
24"	600	36.00	914	12.50	318	24.00	610	21.87	555	24	1.50	38	9.25	235	RF
26"	650	38.25	972	14.00	356	26.00	660	22.85	580	28	1.63	41	10.50	267	RF
28"	700	40.75	1035	15.00	381	28.00	711	24.41	620	28	1.63	41	11.00	279	RF
30"	750	43.00	1092	14.50	368	30.00	762	27.69	703	28	1.75	44	11.75	298	RF
32"	800	45.25	1149	16.00	406	32.00	813	28.93	735	28	1.88	48	12.75	324	RF
36"	900	50.00	1270	19.00	483	36.00	914	32.41	823	32	2.00	51	13.25	337	RF
40"	1000	48.75	1238	21.50	546	36.00	914	36.29	922	32	1.63	41	13.25	337	RF
42"	1050	50.75	1289	22.38	568	40.00	1016	35.99	914	32	1.63	41	13.75	349	RF
48"	1200	57.75	1467	24.75	629	44.00	1118	43.68	1109	32	1.88	48	15.25	387	RF
54"	1350	65.25	1657	28.25	718	50.00	1270	48.65	1236	28	2.25	57	17.50	445	RF
60"	1500	71.25	1810	33.00	838	56.00	1422	48.00	1219	32	2.25	57	18.75	476	RF

Flanged Type – ASME Class 600

SIZE		Dimensions								STUD DETAILS							END FACING
		A		B		D		E		No. (1)	Diameter		RF Stud Length		RTJ Stud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm	in	mm
12"	300	22.00	559	9.00	229	12.75	324	11.32	288	20	1.25	32	8.50	216	9.00	229	RF/RTJ#57
14"	350	23.75	603	10.75	273	14.00	356	12.46	316	20	1.38	35	9.00	229	9.50	241	RF/RTJ#61
16"	400	27.00	686	12.00	305	16.00	406	12.89	327	20	1.50	38	9.75	248	10.25	260	RF/RTJ#65
18"	450	29.25	743	14.25	362	18.00	457	14.52	369	20	1.63	41	10.50	267	11.00	279	RF/RTJ#69
20"	500	32.00	813	14.50	368	20.00	508	17.06	433	24	1.63	41	11.25	286	11.75	298	RF/RTJ#73
24"	600	37.00	940	17.50	445	24.00	610	20.18	513	24	1.63	41	12.25	311	13.00	330	RF/RTJ#77
26"	650	40.00	1016	18.00	457	26.00	660	21.74	552	28	1.88	48	13.25	337	14.25	362	RF/RTJ#93
28"	700	42.25	1073	19.00	483	28.00	711	23.89	607	28	2.00	51	14.00	356	15.00	381	RF/RTJ#94
30"	750	44.50	1130	19.88	505	30.00	762	27.88	708	28	2.00	51	14.00	356	15.00	381	RF/RTJ#95
32"	800	47.00	1194	21.00	533	32.00	813	27.92	709	28	2.25	57	14.75	375	16.00	406	RF/RTJ#96
36"	900	51.75	1314	25.00	635	36.00	914	31.47	799	28	2.50	64	16.00	406	17.00	432	RF/RTJ#98
42"	1050	55.25	1403	27.63	702	38.00	965	36.78	934	28	2.50	64	19.50	495	–	–	RF
48"	1200	62.75	1594	31.00	787	42.00	1067	42.25	1073	32	2.75	70	21.75	552	–	–	RF
54"	1350	70.00	1778	35.00	889	48.00	1219	48.34	1228	32	3.00	76	23.75	603	–	–	RF
60"	1500	78.50	1994	39.00	991	54.00	1372	45.00	1143	28	3.50	89	26.75	679	–	–	RF

Flanged Type – ASME Class 900

SIZE		Dimensions								STUD DETAILS							END FACING
		A		B		D		E		No. (1)	Diameter		RF Stud Length		RTJ Stud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm	in	mm
12"	300	24.00	610	11.50	292	12.75	324	9.98	253	20	1.38	35	8.75	222	9.25	235	RF/RTJ#57
14"	350	25.25	641	14.00	356	14.00	356	9.30	236	20	1.50	38	9.25	235	10.00	254	RF/RTJ#62
16"	400	27.75	705	15.13	384	16.00	406	12.25	311	20	1.63	41	10.00	254	10.75	273	RF/RTJ#66
18"	450	31.00	787	17.75	451	18.00	457	14.06	357	20	1.88	48	11.00	279	11.75	298	RF/RTJ#70
20"	500	33.75	857	17.75	451	20.00	508	17.06	433	20	2.00	51	12.00	305	12.75	324	RF/RTJ#74
24"	600	41.00	1041	19.50	495	24.00	610	16.56	421	20	2.50	64	14.00	356	15.00	381	RF/RTJ#78
26"	650	42.75	1086	21.00	533	24.00	610	20.51	521	20	2.75	70	17.50	445	19.00	483	RF/RTJ#100
28"	700	46.00	1168	22.63	575	26.00	660	21.53	547	20	3.00	76	18.50	470	19.75	502	RF/RTJ#101
30"	750	48.50	1232	26.00	660	28.00	711	27.88	708	20	3.00	76	19.00	483	20.50	521	RF/RTJ#102
32"	800	51.75	1314	26.00	660	30.00	762	25.33	643	20	3.25	83	20.25	514	21.75	552	RF/RTJ#103
36"	900	57.50	1461	28.25	718	34.00	864	31.47	799	20	3.50	89	21.75	552	23.50	597	RF/RTJ#105
40"	1000	59.50	1511	30.00	762	34.00	864	32.61	828	24	3.50	89	23.75	603	–	–	RF
42"	1050	61.50	1562	31.00	787	36.00	914	34.61	879	24	3.50	89	24.50	622	–	–	RF
48"	1200	70.25	1784	34.00	864	42.00	1067	41.67	1058	24	4.00	102	27.75	705	–	–	RF

For Flange Type Dual Plate Check Valves price list as on 02 February, 2018:

Request the latest Flange Type Dual Plate Check Valves Price List. Use the contact button below for Flange Type Dual Plate Check Valves Ready stock information and updated price list.

Call +91-22-6743 7444 / +91-22-6743 8222 OR

Email us at info@acealloysllp.com for quick response
