DIN Flanges Manufacturer & Supplier
DIN 2527 Plate Flanges, DIN 2573 Weld Neck Flanges, DIN 2631 Blind Flanges, DIN PN40 Threaded Flanges, DIN 2573 Slip on Flanges, DIN 2527 PN6 Socket Weld Flanges Exporter & Dealer in India
Manufacturer & Exporter of DIN 2527 / 2573 Pipe Flanges, DIN PN6 Flanges, DIN PN40 Flanges in India.
DIN Flanges are considered as one of the most important industrial necessities. ACE ALLOYS LLP is a renowned DIN Flanges Manufacturer and supplier in the contemporary market. We design DIN Pipe Flanges of all sizes and shapes at quite economical prices. For innumerable industrial applications of our DIN 2573 Flanges and DIN 2631 Flanges they have huge demand in the market.
We design DIN 2527 Flanges and DIN 2527 PN6 Flanges with extreme purity by lending their raw material from genuine vendors. Our DIN Slip on Flanges and DIN Weld Neck Flanges are rust free and flawless. Also, our DIN Blind Flanges and DIN Socket Weld Flanges are noted for their flexibility and long lasting nature.
We own a team of professional clientele who are well satisfied with the quality and performance of our DIN Threaded Flanges and DIN Lap Joint Flanges. We train our employment personnel to use latest design methodologies while fabricating DIN Orifice Flanges and DIN Spectacle Blind flanges.
Our DIN Reducing Flanges and DIN Forged Flanges are resistant to many hazardous chemicals and corrosions. We also consult our clients before deciding the DIN Pipe Flange Sizes do understand their necessity. We have sufficient quantity of DIN Stainless Steel Flanges and DIN Carbon Steel Flanges in our stock, and are ready for shipment. We maintain friendly relations with our clientele and attain feedback from them about our DIN Alloy Steel Flanges and DIN Nickel Alloy Flanges every now and then.
Do visit our official website for further details. In case of any queries, feel free to get in touch with us. Hurry up!
DIN Flanges Specifications:
| Size | DN10 - DN2000 |
| Process | Forged, Stamped |
| Standard | DIN2527 |

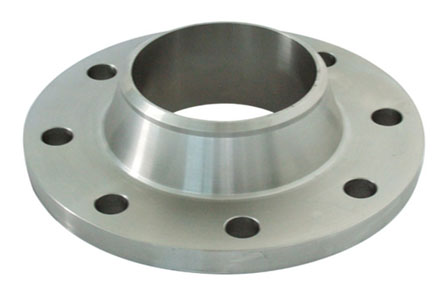

| Type | Welding Neck Flange, WN Flange (Raised Face) |
| Pressure Grade | PN |
| DIN Plate Flanges (Slip On Flanges) | DIN Weld Neck Flanges | DIN Blind Flanges | DIN Threaded Flanges |
| DIN 2573 PN6 Flanges | DIN 2631 PN6 Flanges | DIN 2527 PN6 Flanges | DIN 2565 PN6 Flanges |
| DIN 2576 PN10 Flanges | DIN 2632 PN10 Flanges | DIN 2527 PN10 Flanges | DIN 2566 PN16 Flanges |
| DIN 2502 PN16 Flanges | DIN 2633 PN16 Flanges | DIN 2527 PN16 Flanges | |
| DIN 2503 PN25 Flanges | DIN 2634 PN25 Flanges | DIN 2527 PN25 Flanges | |
| DIN 2543 PN16 Flanges | DIN 2635 PN40 Flanges | DIN 2527 PN40 Flanges |
DIN Flange Dimensions
| Flange Nominal Diameter | Pressure Rating (PN) | |||||
|---|---|---|---|---|---|---|
| **Nominal BSP Pipe Size | PN6 | PN10 | PN16 | PN25 | PN40 | |
| DN 10 | 75 | 90 | 90 | 90 | 90 | O.D. |
| 3/8" | 50 | 60 | 60 | 60 | 60 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 15 | 80 | 95 | 95 | 95 | 95 | O.D. |
| 1/2" | 55 | 65 | 65 | 65 | 65 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 20 | 90 | 105 | 105 | 105 | 105 | O.D. |
| 3/4" | 65 | 75 | 75 | 75 | 75 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 25 | 100 | 115 | 115 | 115 | 115 | O.D. |
| 1" | 75 | 85 | 85 | 85 | 85 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 32 | 120 | 140 | 140 | 140 | 140 | O.D. |
| 1 1/4" | 90 | 100 | 100 | 100 | 100 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 40 | 130 | 150 | 150 | 150 | 150 | O.D. |
| 1 1/2" | 100 | 110 | 110 | 110 | 110 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 50 | 140 | 165 | 165 | 165 | 165 | O.D. |
| 2" | 110 | 125 | 125 | 125 | 125 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 65 | 160 | 185 | 185 | 185 | 185 | O.D. |
| 2 1/2" | 130 | 145 | 145 | 145 | 145 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 8 x 18 | 8 x 18 | # of holes x diam. of holes | |
| DN 80 | 190 | 200 | 200 | 200 | 200 | O.D. |
| 3" | 150 | 160 | 160 | 160 | 160 | PCD (bolt circle) |
| 4 x 18 | 8 x 18 | 8 x 18 | 8 x 18 | 8 x 18 | # of holes x diam. of holes | |
| DN 100 | 210 | 220 | 220 | 235 | 235 | O.D. |
| 4" | 170 | 180 | 180 | 190 | 190 | PCD (bolt circle) |
| 4 x 18 | 8 x 18 | 8 x 18 | 8 x 22 | 8 x 22 | # of holes x diam. of holes | |
| DN 125 | ||||||
Types of DIN Flanges
- DIN Pipe Flange DIN 2573 Flanges
- DIN 2631 Flanges
- DIN 2527 Flanges
- DIN 2527 PN6 Flanges
- DIN Slip on Flanges
- DIN Weld Neck Flanges
- DIN Blind Flanges
- DIN Socket Weld Flanges
- DIN Threaded Flanges
- DIN Lap Joint Flanges
- DIN Orifice Flanges
- DIN Spectacle Blind
- DIN Reducing Flanges
- DIN Forged Flanges
- DIN Flanges Manufacturer
- DIN Pipe Flange Sizes
- DIN Stainless Steel Flanges
- DIN Carbon Steel Flanges
- DIN Alloy Steel Flanges
- DIN Nickel Alloy Flanges
For DIN Flanges price list as on :
Request the latest DIN Flanges Price List. Use the contact button below for DIN Flanges Ready stock information and updated price list.
DIN Flanges Applications
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
