Stainless Steel Buttweld Pipe End Caps Fittings, Carbon Steel Pipe End Caps, Alloy Steel Pipe End Caps, Duplex Steel Pipe End Caps Pipe Fittings Leading Manufacturer & Exporter

ASME / ANSI B 16.9 Pipe Caps, ANSI B16.28 End Caps, ASME B16.25 Pipe End Caps Manufacturer & Suppliers in India

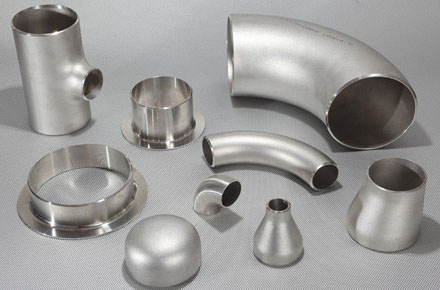

Pipe caps are the pipe fittings used as a plug to cover the end of a pipe. ACE ALLOYS LLP is a leading Pipe Cap Manufacturer . Our pipe cap fittings are of standard quality as all of our fittings are subject to strict inspection. From the time the raw material is procured to the dispatch of the finished goods our expert team monitors each and every process carefully. We are a quality pipe end cap manufacturers. The stainless steel buttweld pipe end caps are known for their sturdiness. We provide ANSI B16.9 pipe cap fittings which are of high quality and internationally recognised. Our forged pipe caps are known for their consistent appearance.

At ACE ALLOYS LLC we fabricate Stainless Steel Pipe Caps, Carbon Steel Pipe Caps and Alloy Steel Pipe Caps are widely used in chemical industries, power generation, and shipbuilding, paper manufacturing, petrochemical and pharmaceutical industries. We can supply Pipe Caps as per your company requirements.

Our titanium Pipe Caps, Monel Pipe Caps and ASME B 16.9 Pipe Caps are manufactured using highest quality of raw materials available at affordable prices. We recommend our nickel Pipe Caps or Cupro nickel Pipe Caps and Hastelloy Pipe Caps for excellent mechanical strength, high corrosion and oxidation resistance. These Pipe Caps are especially good for use at high temperatures due to their excellent heat resistance. We can also provide Duplex Steel Buttweld pipe caps which are acclaimed for their consistence and high corrosion resistance.

At ACE ALLOYS LLC we fabricate Buttweld Pipe Caps in different sizes and shapes which can be customised as per your company specifications. Call us to place your orders now and we guarantee you the best quality products at affordable rates.

Monel 400 / K500 Pipe Cap, Inconel 200 / 201 Pipe Cap Fittings, Hastelloy C22 / C276 Pipe Cap, Duplex Steel S31803 Pipe Cap Buttweld Fittings Dealer & Stockists

Pipe Cap Buttweld Fitting Specifications:

Pipe Cap Buttweld Fitting Dimensions

CAPS – ANSI 16.9 dimension
Nominal Pipe Size	Outside diameter at bevel	Length (E)	Limit wall thickness
1/2"	21.3	25	4.57
3/4"	26.7	25	3.81
1"	33.4	38	4.57
1 1/4"	42.2	38	4.83
1 1/2"	48.3	38	5.08
2"	60.3	38	5.59
2 1/2"	73.0	38	7.11
3"	88.9	51	7.62
3 1/2"	101.6	64	8.13
4"	114.3	64	8.64
5"	141.3	76	9.65
6"	168.3	89	10.92
8"	219.1	102	12.70
10"	273.0	127	12.70
12"	323.8	152	12.70
14"	355.6	165	12.70
16"	406.4	178	12.70
18"	457.0	203	12.70
20"	508.0	229	12.70
22"	559.0	254	12.70
24"	610.0	267	12.70
Dimension in mm

The dimensions are in millimeters
Source : ASME B16.9 – 2007

CAPS – ANSI B 16.9 dimension
inches	mm	Height
		D	E
1/2	15	21,34	25,40
3/4	20	26,67	31,75
	25	33,40	38,10
1 1/4	32	42,16	38,10
1 1/2	40	48,26	38,10
2	50	60,32	38,10
2 1/2	65	73,02	38,10
3	80	88,90	50,80
3 1/2	90	101,60	63,50
4	100	114,30	63,50
5	125	141,30	76,20
6	150	168,27	88,90
8	200	219,07	101,60
10	250	273,05	127,00
12	300	323,85	152,40
14	350	355,60	165,10
16	400	406,40	177,80
18	450	457,20	203,20
20	500	508,00	228,60
22	550	558,80	254,00
24	600	609,60	266,70
28	700	711,20	266,70
Dimension in mm

The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Pipe Cap Material & Grades

Use the contact button below for Pipe Cap Buttweld Fitting Price List and Ready stock information.
