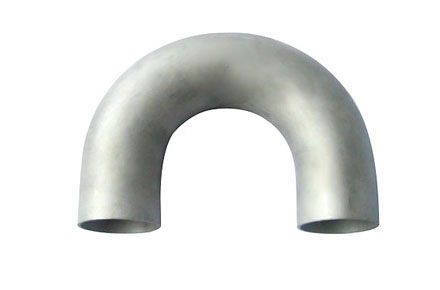

180 Degree Long Radius Elbow Buttweld Fitting Manufacturer
Stainless Steel 180 Degree Long Radius Elbow, Carbon Steel 180 Degree Long Radius Elbow Fittings, Nickel Alloy 180 Degree Long Radius Elbows, Alloy Steel 180 Degree Long Radius Elbow Buttweld Fittings Manufacturer & Exporter
ASME/ANSI B16.9, MSS-SP-43 180 Degree Long Radius Elbow, ANSI B16.28 180 Degree LR Elbow Pipe Fittings Dealer & Exporter in India
We, ACE ALLOYS LLP are the chief manufacturer and exporter of 180 Degree Long Radius Elbow. 180 Degrees Long Radius Elbow consists of a complete semi-circle direction changing pipe. The 180 Degree LR Elbow is used in areas having a scattered area of application. We manufacture supreme quality 180 Long Radius Degree Reducing Elbow and ANSI B16.9 180 Deg Long Radius Elbow. We supply the most economically priced and customized products to our customers worldwide. Buttweld 180 Degree Long Radius Elbow is one of our best-sellers in the market.
The materials used in the processing of 180 Long Radius Elbow are unadulterated and unblended alloys made utilizing premiere quality chromium, molybdenum, carbon and stainless steel. The products belonging to 180° Long Radius Elbow Buttweld Fitting catalogue are prefabricated under the guidance of our diligent workforce. The Stainless Steel 180 Degree Long Radius Elbow and Carbon Steel 180 Deg Long Radius Elbow is our mostly in demand product throughout the year due to their qualities like high resistance to corrosion, exceptional hardness and malleability.
We manufacture Alloy Steel 180 Degree Long Radius Elbow in various sizes, specifications and grades according to the requirements of our customers. The ASME B16.9 180 Deg Long Radius Elbow assembled by us stands true to all the standards laid by the international union and surpasses the Raw materials certificate, 100% radiography report and NABL approved the test.
We assure you with the best in class products and services at best market prices. Contact us today for your specific needs.
Monel 400 / K500 180 Deg Long Radius Elbow, Inconel 200 / 201 180 Deg Long Radius Elbow Fittings, Hastelloy C22 / C276 180 Deg Long Radius Elbows, Duplex Steel S31803 180 Deg Long Radius Elbow Pipe Fittings Dealer & Stockists
180 Degree Long Radius Elbow Buttweld Fitting Availability:
- Butt Weld 180 Degree Long Radius Elbow Buttweld Fitting
- Welded 180 Degree Long Radius Elbow Buttweld Fitting
- ERW 180 Degree Long Radius Elbow Buttweld Fitting
- Fabricated 180 Degree Long Radius Elbow Buttweld Fitting
180 Degree Long Radius Elbow Buttweld Fitting Specifications:
| Standards | ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule | Sch 5 TO Sch XXS. |
| Sizes | 1/2"NB TO 48"NB IN / Diameters – from 21,3 to 711 mm, Wall Thickness – from 2 to 40 mm |
| Materials | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 45/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type | Butt Weld (BW) / Welded / ERW / Fabricated |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |

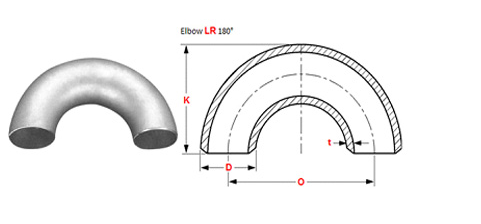

180 Degree Long Radius Elbow Buttweld Fitting Dimensions
 |
||||||
| NPS | O.D. D | 180 Degree Long Radius | ||||
| Center to Center O |
Back to Face K |
|||||
| 1/2 | 21.3 | 76 | 48 | |||
| 3/4 | 26.7 | 76 | 51 | |||
| 1 | 33.4 | 76 | 56 | |||
| 1¼ | 42.2 | 95 | 70 | |||
| 1½ | 48.3 | 114 | 83 | |||
| 2 | 60.3 | 152 | 106 | |||
| 2½ | 73 | 190 | 132 | |||
| 3 | 88.9 | 229 | 159 | |||
| 3½ | 101.6 | 267 | 184 | |||
| 4 | 114.3 | 305 | 210 | |||
| 5 | 141.3 | 381 | 262 | |||
| 6 | 168.3 | 457 | 313 | |||
| 8 | 219.1 | 610 | 414 | |||
| 10 | 273 | 762 | 518 | |||
| 12 | 323.8 | 914 | 619 | |||
| 14 | 355.6 | 1067 | 711 | |||
| 16 | 406.4 | 1219 | 813 | |||
| 18 | 457 | 1372 | 914 | |||
| 20 | 508 | 1524 | 1016 | |||
| 22 | 559 | 1676 | 1118 | |||
| 24 | 610 | 1829 | 1219 | |||
The dimensions are in millimeters
Source : ASME B16.9 – 2007
Buttweld 180 Degree Long Radius Elbow Material & Grades
| Stainless Steel Buttweld 180 Degree Long Radius Elbow |
| ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Duplex & Super Duplex Steel Buttweld 180 Degree Long Radius Elbow |
| ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
| Carbon Steel Buttweld 180 Degree Long Radius Elbow |
| ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Buttweld 180 Degree Long Radius Elbow |
| ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Buttweld 180 Degree Long Radius Elbow |
| ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Nickel Alloy Buttweld 180 Degree Long Radius Elbow |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
Types of 180 Degree Long Radius Elbow Buttweld Fitting
- Buttweld 180 Degree Long Radius Elbow
- Butt Weld B16.9 180 Degree Long Radius Elbow
- Steel 180 Degree Long Radius Elbow
- Stainless Steel 180 Degree Long Radius Elbow Suppliers
- SS 180 Degree Long Radius Elbow
- Welded Butt weld 180 Degree Long Radius Elbow Stockholder
- Seamless Butt weld 180 Degree Long Radius Elbow Distributors
- Carbon Steel 180 Degree Long Radius Elbow
- High Quality 180 Degree Long Radius Elbow Manufacturer
- Duplex Steel Buttweld 180 Degree Long Radius Elbow
- Super Duplex Steel Buttweld 180 Degree Long Radius Elbow
- Copper Nickel 180 Degree Long Radius Elbow
- High Nickel Alloy 180 Degree Long Radius Elbow
- Hastelloy 180 Degree Long Radius Elbow Stockist
- Titanium Buttweld 180 Degree Long Radius Elbow
- Inconel Butt weld 180 Degree Long Radius Elbow
- 347 Stainless Steel 180 Degree Long Radius Elbow
- 316 Stainless Steel 180 Degree Long Radius Elbow
- 304 Stainless Steel 180 Degree Long Radius Elbow
- 304L Stainless Steel 180 Degree Long Radius Elbow
- 316TI Stainless Steel 180 Degree Long Radius Elbow
- 316H Stainless Steel 180 Degree Long Radius Elbow
- 316L Stainless Steel 180 Degree Long Radius Elbow
- 316LN Stainless Steel 180 Degree Long Radius Elbow
- 317 Stainless Steel 180 Degree Long Radius Elbow
- 317L Stainless Steel 180 Degree Long Radius Elbow
- 321 Stainless Steel 180 Degree Long Radius Elbow
- Duplex Steel 180 Degree Long Radius Elbow
- 347H Stainless Steel 180 Degree Long Radius Elbow
- 904L Stainless Steel 180 Degree Long Radius Elbow
- 321H Stainless Steel 180 Degree Long Radius Elbow
- 347 Stainless Steel 180 Degree Long Radius Elbow
- Stainless Steel Buttweld 180 Degree Long Radius Elbow
- Duplex Stainless Steel 180 Degree Long Radius Elbow
- 304H Stainless Steel 180 Degree Long Radius Elbow
- 309S Stainless Steel 180 Degree Long Radius Elbow
- 310S Stainless Steel 180 Degree Long Radius Elbow
- 310H Stainless Steel 180 Degree Long Radius Elbow
- 316 Stainless Steel 180 Degree Long Radius Elbow
- Alloy Steel Buttweld 180 Degree Long Radius Elbow
- Stainless Steel 180 Degree Long Radius Elbow
- Carbon Steel 180 Degree Long Radius Elbow
- Alloy Steel 180 Degree Long Radius Elbow
- Carbon Steel Buttweld 180 Degree Long Radius Elbow
- 309H Stainless Steel 180 Degree Long Radius Elbow
- Super Duplex 180 Degree Long Radius Elbow
180 Degree Long Radius Elbow Buttweld Fitting Available Standards
- ASTM A403 Stainless Steel 180 Degree Long Radius Elbow
- ASTM A403 180 Degree Long Radius Elbow
- ASTM A234 WPB 180 Degree Long Radius Elbow
- ASTM A694 180 Degree Long Radius Elbow
- ASTM A860 WPHY 52 180 Degree Long Radius Elbow
- ASTM A860 WPHY 56 180 Degree Long Radius Elbow
- ASTM A860 WPHY 60 180 Degree Long Radius Elbow
- ASTM A860 WPHY 65 180 Degree Long Radius Elbow
- ASTM A860 WPHY 70 180 Degree Long Radius Elbow
- ASTM A234 180 Degree Long Radius Elbow
- ASTM A234 Alloy Steel 180 Degree Long Radius Elbow
- ASTM A420 WPL6 180 Degree Long Radius Elbow
- ASTM A860 WPHY 42 180 Degree Long Radius Elbow
- ASTM A420 WPL3 180 Degree Long Radius Elbow
- ASTM A234 WP12 180 Degree Long Radius Elbow
- ASTM A234 WP11 180 Degree Long Radius Elbow
- ASTM A234 WP22 180 Degree Long Radius Elbow
- ASTM A234 WP5 180 Degree Long Radius Elbow
- ASTM A234 WP9 180 Degree Long Radius Elbow
- ASTM A234 WP91 180 Degree Long Radius Elbow
Other Standards of 180 Degree Long Radius Elbow Buttweld Fitting
- ASME B16.9 Butt weld 180 Degree Long Radius Elbow
- ASME B16.28 Buttweld 180 Degree Long Radius Elbow Exporter
- ANSI B16.9 Buttweld 180 Degree Long Radius Elbow Dealer
- DIN 1.4961 180 Degree Long Radius Elbow
- DIN 1.4840 180 Degree Long Radius Elbow
- DIN 1.48180 180 Degree Long Radius Elbow
- DIN 1.4449 180 Degree Long Radius Elbow
- DIN 1.4438 180 Degree Long Radius Elbow
- DIN 1.4841 180 Degree Long Radius Elbow
- ASME B16.9 180 Degree Long Radius Elbow
- ASME B16.25 180 Degree Long Radius Elbow
- MSS SP-75 180 Degree Long Radius Elbow
- SCH10 180 Degree Long Radius Elbow
- SCH20 180 Degree Long Radius Elbow
- SCH30 180 Degree Long Radius Elbow
- STD SCH40 180 Degree Long Radius Elbow
- DIN 1.4305 180 Degree Long Radius Elbow
- DIN 1.4301 180 Degree Long Radius Elbow
- DIN 1.4307 180 Degree Long Radius Elbow
- DIN 1.4948 180 Degree Long Radius Elbow
- DIN 1.4401 180 Degree Long Radius Elbow
- DIN 1.4404 180 Degree Long Radius Elbow
- DIN 1.4919 180 Degree Long Radius Elbow
- DIN 1.4571 180 Degree Long Radius Elbow
- DIN 1.4541 180 Degree Long Radius Elbow
- DIN 1.4878 180 Degree Long Radius Elbow
- UNS S32900 180 Degree Long Radius Elbow
- UNS S34700 180 Degree Long Radius Elbow
- UNS S34709 180 Degree Long Radius Elbow
- UNS S31000 180 Degree Long Radius Elbow
- UNS S31008 180 Degree Long Radius Elbow
- UNS S31700 180 Degree Long Radius Elbow
- UNS S31703 180 Degree Long Radius Elbow
- UNS S31400 180 Degree Long Radius Elbow
- SCH60 180 Degree Long Radius Elbow
- SCH XS 180 Degree Long Radius Elbow
- SCH80. 180 Degree Long Radius Elbow
- DIN 2605 180 Degree Long Radius Elbow
- DIN 2609 180 Degree Long Radius Elbow
- DIN 2617 180 Degree Long Radius Elbow
- EN 10253-3 180 Degree Long Radius Elbow
- A403 Gr WP304 180 Degree Long Radius Elbow
- A403 Gr WP 304L 180 Degree Long Radius Elbow
- UNS N08904 180 Degree Long Radius Elbow
- UNS S17400 180 Degree Long Radius Elbow
- A403 Gr WP316Ti 180 Degree Long Radius Elbow
- UNS S32109 180 Degree Long Radius Elbow
- A403 Gr WP321 180 Degree Long Radius Elbow
- A403 Gr WP321H 180 Degree Long Radius Elbow
- A403 Gr WP347 180 Degree Long Radius Elbow
- A403 Gr WP347H 180 Degree Long Radius Elbow
- A403 Gr WP317 180 Degree Long Radius Elbow
- A403 Gr WP 317L 180 Degree Long Radius Elbow
- A234WPC 180 Degree Long Radius Elbow
- A420 WPL6 180 Degree Long Radius Elbow
- UNS S30300 180 Degree Long Radius Elbow
- UNS S30400 180 Degree Long Radius Elbow
- UNS S30403 180 Degree Long Radius Elbow
- UNS S30409 180 Degree Long Radius Elbow
- UNS S31600 180 Degree Long Radius Elbow
- UNS S31603 180 Degree Long Radius Elbow
- UNS S31609 180 Degree Long Radius Elbow
- DIN 1.4460 180 Degree Long Radius Elbow
- DIN 1.4550 180 Degree Long Radius Elbow
- DIN 1.4006 180 Degree Long Radius Elbow
- DIN 1.4005 180 Degree Long Radius Elbow
- DIN 1.4021 180 Degree Long Radius Elbow
- DIN 1.4016 180 Degree Long Radius Elbow
- UNS S31635 180 Degree Long Radius Elbow
- UNS S32100 180 Degree Long Radius Elbow
- UNS S13800 180 Degree Long Radius Elbow
- UNS S66286 180 Degree Long Radius Elbow
- UNS S66286 180 Degree Long Radius Elbow
- UNS S20910 180 Degree Long Radius Elbow
- UNS S21800 180 Degree Long Radius Elbow
- SCH160 180 Degree Long Radius Elbow
- DIN 2615 180 Degree Long Radius Elbow
- DIN 2616 180 Degree Long Radius Elbow
- UNS S43020 180 Degree Long Radius Elbow
- UNS S43100 180 Degree Long Radius Elbow
- UNS S44004 180 Degree Long Radius Elbow
- UNS S41000 180 Degree Long Radius Elbow
- UNS S41600 180 Degree Long Radius Elbow
- UNS S42000 180 Degree Long Radius Elbow
- A403 Gr WP316 180 Degree Long Radius Elbow
- A403 Gr WP316L 180 Degree Long Radius Elbow
- UNS S43000 180 Degree Long Radius Elbow
- UNS S44600 180 Degree Long Radius Elbow
- UNS S44200 180 Degree Long Radius Elbow
- UNS S15500 180 Degree Long Radius Elbow
- DIN 1.4104 180 Degree Long Radius Elbow
- DIN 1.4057 180 Degree Long Radius Elbow
- DIN 1.4125 180 Degree Long Radius Elbow
- DIN 1.4762 180 Degree Long Radius Elbow
- DIN 1.4742 180 Degree Long Radius Elbow
- DIN 1.4539 180 Degree Long Radius Elbow
- DIN 1.4542 180 Degree Long Radius Elbow
- DIN 1.4545 180 Degree Long Radius Elbow
- DIN 1.4534 180 Degree Long Radius Elbow
- DIN 1.4980 180 Degree Long Radius Elbow
- SCH100 180 Degree Long Radius Elbow
- SCH120 180 Degree Long Radius Elbow
- SCH140 180 Degree Long Radius Elbow
- EN 10253-1 180 Degree Long Radius Elbow
- EN 10253-2 180 Degree Long Radius Elbow
- SCH XXS 180 Degree Long Radius Elbow
Use the contact button below for 180 Degree Long Radius Elbow Buttweld Fitting Price List and Ready stock information.
180 Degree Long Radius Elbow Buttweld Fitting Applications
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
180 Degree Long Radius Elbow Buttweld Fitting Manufacturer & Supplier
- 180 Degree Long Radius Elbow Buttweld Fitting manufacturer in india
- 180 Degree Long Radius Elbow Buttweld Fitting supplier in india
- 180 Degree Long Radius Elbow Buttweld Fitting manufacturer in Mumbai
- 180 Degree Long Radius Elbow Buttweld Fitting manufacturer in Pune
- 180 Degree Long Radius Elbow Buttweld Fitting supplier in Chennai
- 180 Degree Long Radius Elbow Buttweld Fitting manufacturer in Hyderabad
Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.
Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
