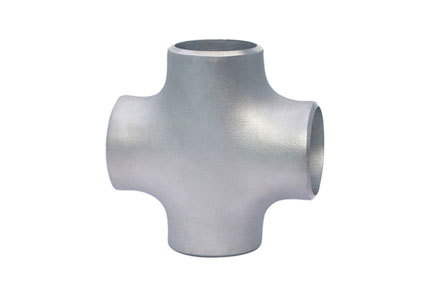

Equal Cross Buttweld Fitting Manufacturer
Stainless Steel Equal Cross, Carbon Steel Equal Cross Fittings, Nickel Alloy Equal Cross, Alloy Steel Equal Cross Pipe Fittings Manufacturer & Exporter
ASME / ANSI B 16.9 Equal Cross Buttweld Fittings, ASTM A403 SS Equal Cross, ANSI B16.28 Equal Cross Pipe Fittings Suppliers & Dealers in India
ACE ALLOYS LLP is a quality Buttweld Equal Cross pipe fitting manufacturers. An equal cross pipe fittings is used to equally distribute the flow of a fluid in 3 different directions. One will be an inlet and the other 3 pipe connections are outlets in different directions. It is in the shape of a “+”. These types of fittings are used in a number of industries for a better network of fluid supply.
We provide quality ANSI B16.9 Equal Cross fittings, Male Equal Cross fittings and Female Equal Cross fittings as per the clients’ requirements. Our buttweld equal cross fittings ensure smooth and even finishes inside and outside of the product. The Forged Equal Cross is a seamless product which is highly durable as forging ensures no deformities or uneven surfaces. We also manufacture Hydraulic Equal Cross fittings that are made to withstand high amount of pressure and avoid leakage.
We manufacture quality Stainless Steel Equal Cross fittings, Carbon steel equal Cross fittings which have a very high demand due to the durability and strength they offer. We can also supply alloy steel equal cross, titanium equal cross or Monel equal cross as per the requirements of our clients. These Buttweld Equal Crosses are excellent for their superior finish and leak resistance. The ASME B 16.9 Equal Cross is made using high quality raw materials and of international standards. Our Cupro-Nickel Equal Cross and Nickel Equal cross are recommended for their high corrosion and oxidation resistance. The Hastelloy Equal Cross is also well known for its high heat resistance to be used in numerous industries. We are well known as quality Buttweld Equal Cross suppliers.
Our Buttweld Equal Cross is of high quality and available in various sizes. They are customisable as per your requirements. Contact ACE ALLOYS LLP for your needs and we assure you the best quality products for reasonable prices.
Monel 400 / K500 Equal Cross, Inconel 200 / 201 Equal Cross Fittings, Hastelloy C22 / C276 Equal Cross, Duplex Steel S31803 Equal Cross Pipe Fittings Dealer & Stockists
Equal Cross Buttweld Fitting Availability:
- Butt Weld Equal Cross Buttweld Fitting
- Seamless Equal Cross Buttweld Fitting
- Welded Equal Cross Buttweld Fitting
- ERW Equal Cross Buttweld Fitting
- Fabricated Equal Cross Buttweld Fitting
Equal Cross Buttweld Fitting Specifications:
| Standards | ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule | Sch 5 TO Sch XXS. |
| Sizes | 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” ) |
| Materials | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type | Butt Weld (BW) / Seamless / ERW / Welded / Fabricated |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Equal Cross Buttweld Fitting Dimensions
 |
|||||
| Nominal Pipe Size (NPS) | DN | Outside Diameter at Bevel | Center- to-End | ||
| Run.C | Outlet. M | ||||
| 1/2 | 15 | 21.3 | 25 | 25 | |
| 3/4 | 20 | 26.7 | 29 | 29 | |
| 1 | 25 | 33.4 | 38 | 38 | |
| 1-1/4 | 32 | 42.2 | 48 | 48 | |
| 1-1/2 | 40 | 48.3 | 57 | 57 | |
| 2 | 50 | 60.3 | 64 | 64 | |
| 2-1/2 | 65 | 73.0 | 76 | 76 | |
| 3 | 80 | 88.9 | 86 | 86 | |
| 3-1/2 | 90 | 101.6 | 95 | 95 | |
| 4 | 100 | 114.3 | 105 | 105 | |
| 5 | 125 | 141.3 | 124 | 124 | |
| 6 | 150 | 168.3 | 143 | 143 | |
| 8 | 200 | 219.1 | 178 | 178 | |
| 10 | 250 | 273.0 | 216 | 216 | |
| 12 | 300 | 323.8 | 254 | 254 | |
| 14 | 350 | 355.6 | 279 | 279 | |
| 16 | 400 | 406.4 | 305 | 305 | |
| 18 | 450 | 457 | 343 | 343 | |
| 20 | 500 | 508 | 381 | 381 | |
| 22 | 550 | 559 | 419 | 419 | |
| 24 | 600 | 610 | 432 | 432 | |
| 26 | 650 | 660 | 495 | 495 | |
| 28 | 700 | 711 | 521 | 521 | |
| 30 | 750 | 762 | 559 | 559 | |
| 32 | 800 | 813 | 597 | 597 | |
| 34 | 850 | 864 | 635 | 635 | |
| 36 | 900 | 914 | 673 | 673 | |
| 38 | 950 | 965 | 711 | 711 | |
| 40 | 1000 | 1016 | 749 | 749 | |
| 42 | 1050 | 1067 | 762 | 711 | |
| 44 | 1100 | 1118 | 813 | 762 | |
| 46 | 1150 | 1168 | 851 | 800 | |
| 48 | 1200 | 1219 | 889 | 838 | |
The dimensions are in millimeters
Source : ASME B16.9 – 2007
Buttweld Equal Cross Material & Grades
| Stainless Steel Buttweld Equal Cross |
| ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Duplex & Super Duplex Steel Buttweld Equal Cross |
| ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
| Carbon Steel Buttweld Equal Cross |
| ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Buttweld Equal Cross |
| ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Buttweld Equal Cross |
| ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Nickel Alloy Buttweld Equal Cross |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
Types of Equal Cross Buttweld Fitting
- 201 Stainless Steel Equal Cross
- 202 Stainless Steel Equal Cross
- 304 Stainless Steel Equal Cross
- 304L Stainless Steel Equal Cross
- 316TI Stainless Steel Equal Cross
- 316H Stainless Steel Equal Cross
- 316L Stainless Steel Equal Cross
- 316LN Stainless Steel Equal Cross
- 317 Stainless Steel Equal Cross
- 317L Stainless Steel Equal Cross
- 321 Stainless Steel Equal Cross
- Duplex Steel Equal Cross
- 347H Stainless Steel Equal Cross
- 904L Stainless Steel Equal Cross
- 321H Stainless Steel Equal Cross
- 347 Stainless Steel Equal Cross
- Stainless Steel Buttweld Equal Cross
- Duplex Stainless Steel Equal Cross
- 304H Stainless Steel Equal Cross
- 309S Stainless Steel Equal Cross
- 310S Stainless Steel Equal Cross
- 310H Stainless Steel Equal Cross
- 316 Stainless Steel Equal Cross
- Alloy Steel Buttweld Equal Cross
- Stainless Steel Equal Cross
- Carbon Steel Equal Cross
- Alloy Steel Equal Cross
- Super Duplex Equal Cross
- Buttweld Equal Cross
- Butt Weld Cross
- Steel Cross Pipe Fittings
- Carbon SEqual Crossl Buttweld Equal Cross
- 309H Stainless SEqual Crossl Equal Cross
- Stainless Steel Equal Cross Suppliers
- SS Equal Cross
- Welded Butt weld Equal Cross Stockholder
- Seamless Butt weld Equal Cross Distributors
- Carbon Steel Lateral Cross
- High Quality Equal Cross Manufacturer
- Duplex Steel Buttweld Cross
- Super Duplex Steel Buttweld Cross
- Copper Nickel Equal Cross
- High Nickel Alloy Equal Cross
- Hastelloy Pipe Cross Stockist
- Titanium Buttweld Cross
- Inconel Butt weld Barred Cross
Equal Cross Buttweld Fitting Available Standards
- ASTM A403 Equal Cross
- ASTM A234 WPB Equal Cross
- ASTM A694 Equal Cross
- ASTM A860 WPHY 52 Equal Cross
- ASTM A860 WPHY 56 Equal Cross
- ASTM A860 WPHY 60 Equal Cross
- ASTM A860 WPHY 65 Equal Cross
- ASTM A860 WPHY 70 Equal Cross
- ASTM A234 Equal Cross
- ASTM A234 Alloy Steel Equal Cross
- ASTM A420 WPL6 Equal Cross
- ASTM A860 WPHY 42 Equal Cross
- ASTM A420 WPL3 Equal Cross
- ASTM A234 WP12 Equal Cross
- ASTM A234 WP11 Equal Cross
- ASTM A234 WP22 Equal Cross
- ASTM A234 WP5 Equal Cross
- ASTM A234 WP9 Equal Cross
- ASTM A234 WP91 Equal Cross
- ASTM A403 Stainless Steel Equal Cross
Other Standards of Equal Cross Buttweld Fitting
- DIN 1.4961 Equal Cross
- DIN 1.4840 Equal Cross
- DIN 1.4845 Equal Cross
- DIN 1.4449 Equal Cross
- DIN 1.4438 Equal Cross
- DIN 1.4841 Equal Cross
- ASME B16.9 Equal Cross
- ASME B16.25 Equal Cross
- MSS SP-75 Equal Cross
- SCH10 Equal Cross
- SCH20 Equal Cross
- SCH30 Equal Cross
- STD SCH40 Equal Cross
- DIN 1.4305 Equal Cross
- DIN 1.4301 Equal Cross
- DIN 1.4307 Equal Cross
- DIN 1.4948 Equal Cross
- DIN 1.4401 Equal Cross
- DIN 1.4404 Equal Cross
- DIN 1.4919 Equal Cross
- DIN 1.4571 Equal Cross
- DIN 1.4541 Equal Cross
- DIN 1.4878 Equal Cross
- UNS S32900 Equal Cross
- UNS S34700 Equal Cross
- UNS S34709 Equal Cross
- UNS S31000 Equal Cross
- UNS S31008 Equal Cross
- UNS S31700 Equal Cross
- UNS S31703 Equal Cross
- UNS S31400 Equal Cross
- SCH60 Equal Cross
- SCH XS Equal Cross
- SCH80. Equal Cross
- DIN 2605 Equal Cross
- DIN 2609 Equal Cross
- DIN 2617 Equal Cross
- EN 10253-3 Equal Cross
- A403 Gr WP304 Equal Cross
- A403 Gr WP 304L Equal Cross
- UNS N08904 Equal Cross
- UNS S17400 Equal Cross
- A403 Gr WP316Ti Equal Cross
- UNS S32109 Equal Cross
- A403 Gr WP321 Equal Cross
- A403 Gr WP321H Equal Cross
- A403 Gr WP347 Equal Cross
- A403 Gr WP347H Equal Cross
- A403 Gr WP317 Equal Cross
- A403 Gr WP 317L Equal Cross
- A234WPC Equal Cross
- A420 WPL6 Equal Cross
- UNS S30300 Equal Cross
- UNS S30400 Equal Cross
- UNS S30403 Equal Cross
- UNS S30409 Equal Cross
- UNS S31600 Equal Cross
- UNS S31603 Equal Cross
- UNS S31609 Equal Cross
- DIN 1.4460 Equal Cross
- DIN 1.4550 Equal Cross
- DIN 1.4006 Equal Cross
- DIN 1.4005 Equal Cross
- DIN 1.4021 Equal Cross
- DIN 1.4016 Equal Cross
- UNS S31635 Equal Cross
- UNS S32100 Equal Cross
- UNS S13800 Equal Cross
- UNS S66286 Equal Cross
- UNS S66286 Equal Cross
- UNS S20910 Equal Cross
- UNS S21800 Equal Cross
- SCH160 Equal Cross
- DIN 2615 Equal Cross
- DIN 2616 Equal Cross
- UNS S43020 Equal Cross
- UNS S43100 Equal Cross
- UNS S44004 Equal Cross
- UNS S41000 Equal Cross
- UNS S41600 Equal Cross
- UNS S42000 Equal Cross
- A403 Gr WP316 Equal Cross
- A403 Gr WP316L Equal Cross
- UNS S43000 Equal Cross
- UNS S44600 Equal Cross
- UNS S44200 Equal Cross
- UNS S15500 Equal Cross
- DIN 1.4104 Equal Cross
- DIN 1.4057 Equal Cross
- DIN 1.4125 Equal Cross
- DIN 1.4762 Equal Cross
- DIN 1.4742 Equal Cross
- DIN 1.4539 Equal Cross
- DIN 1.4542 Equal Cross
- DIN 1.4545 Equal Cross
- DIN 1.4534 Equal Cross
- DIN 1.4980 Equal Cross
- SCH100 Equal Cross
- SCH120 Equal Cross
- SCH140 Equal Cross
- EN 10253-1 Equal Cross
- ASME B16.9 Butt weld Equal Cross
- ANSI B16.9 Buttweld Cross Dealer
- ASME B16.28 Buttweld Pipe Cross Exporter
- EN 10253-2 Equal Cross
- SCH XXS Equal Cross
Use the contact button below for Equal Cross Buttweld Fittings Price List and Ready stock information.
Equal Cross Buttweld Fitting Applications
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
