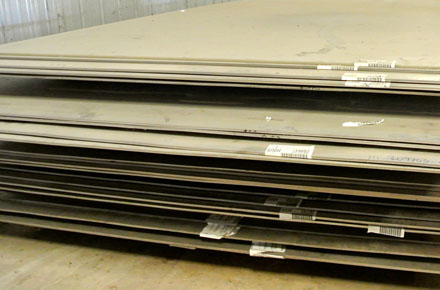

Inconel 800 Sheets, Plates & Coils
Inconel 800 Sheets, ASTM B408 Inconel Alloy 800 Sheets, Inconel Alloy UNS N08800 Plates, Inconel 800 Coils, Incoloy Alloy Workstoff NR.1.4876 Slatting Coils, Inconel 800 Hot Rolled Sheets Stockists & Exporters
Inconel Alloy 800 Sheets Manufacturer, Inconel 800 Plates Supplier, Incoloy 800 Coils & Circles Dealer in India
Inconel 800 Sheets, Plates & Coils are magnificent mechanisms which are noted for their corrosion resistive nature. ACE ALLOYS LLP is an eminent Inconel Alloy 800 Sheets, Plates & Coils Manufacturer & Supplier of the market. We design Inconel 800 Sheets of all sizes and shapes. For the distinguished properties of our Inconel 800 Plates and Inconel 800 Coils they are preferred by many mechanical firms.
The purity in our Inconel Alloy 800 Sheets gives them the strength to stay immune towards carburization and oxidation at extreme temperatures. We employ well trained and experienced professionals to design Inconel Alloy 800 Shim Sheets with modern methodologies. Before fabricating Inconel Alloy 800 Perforated Sheets and Alloy 800 Hot Rolled Sheets, we thoroughly check our machinery for flawlessness.
Our Inconel Alloy 800 Plates are noted for their exemplary mechanical properties. Our Inconel Alloy 800 Hot Rolled plates own great creep rupture strength. Also, our Inconel Alloy 800 Cold Rolled Plates have great temperature strength. Our Inconel Alloy 800 Chequered and Plates Alloy 800 Polished Plates can also be used under sulfur containing atmospheres.
Our Inconel Alloy 800 Coils are widely used in hydrocarbon cracking. On the other hand, our Inconel Alloy 800 Hot Rolled Coils and Inconel Alloy 800 Cold Rolled Coils have wide range of applications in pressure vessels and heat exchangers. Our Alloy 800 Slatting Coils are deployed in industrial furnaces.
To acquire complete idea about our all of our goods and services, do visit our official web page. In case of any queries, feel free to drop us an email. You can even make a telephonic call to our sales personnel if needed. With no more ado, place your order right now!
Inconel 800 Plates, DIN 1.4876 Inconel 800 Perforated Sheets, Inconel Alloy 800 Sheets Cut to Size, ASTM B408 Inconel Alloy 800 Shim Sheets, Inconel 800 Hot Rolled Plates, ASME SAB408 Inconel Alloy 800 Chequered Plates Dealer & Wholesalers
Inconel 800 Sheets, Plates & Coils Specifications:
| Specifications | ASTM / ASME SB 409 |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Grade of Inconel 800 Sheets, Plates & Coils
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Chemical Composition of Inconel 800 Sheets, Plates & Coils
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
Mechanical properties of Inconel 800 Sheets, Plates & Coils
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 800 | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Types of Inconel 800 Sheets, Plates & Coils
- Inconel 800 Foils
- Alloy 800 Foils
- 800 Inconel Foils
- 800 Alloy Foils
- Inconel UNS N08800 Foils
- Inconel WERKSTOFF NR. 1.4876 Foils
- ASME SB409 Inconel 800 Foils
- Alloy 800 Shim Sheet
- 800 Inconel Shim Sheet
- 800 Alloy Shim Sheet
- Inconel UNS N08800 Shim Sheet
- Alloy 800 Polished Plates
- Inconel WERKSTOFF NR. 1.4876 Shim Sheet
- ASTM / ASME SB409 Inconel 800 Shim Sheet
- Inconel 800 Polished Plates
- 800 Inconel Polished Plates
- 800 Alloy Polished Plates
- Inconel UNS N08800 Polished Plates
- Inconel 800 Hot Rolled Plates
- Inconel WERKSTOFF NR. 1.4876 Polished Plates
- ASTM / ASME SB409 Inconel 800 Polished Plates
- Alloy 800 Hot Rolled Plates
- 800 Inconel Hot Rolled Plates
- 800 Alloy Hot Rolled Plates
- Inconel UNS N08800 Hot Rolled Plates
- Alloy 800 Coils
- Inconel WERKSTOFF NR. 1.4876 Hot Rolled Plates
- ASME SB409 Alloy 800 Hot Rolled Plates
- Inconel 800 Cold Rolled Plates
- Alloy 800 Cold Rolled Plates
- 800 Inconel Cold Rolled Plates
- 800 Alloy Cold Rolled Plates
- Inconel UNS N08800 Cold Rolled Plates
- Inconel WERKSTOFF NR. 1.4876 Cold Rolled Plates
- ASTM / ASME SB409 Inconel 800 Cold Rolled Plates
- Inconel 800 Coils
- 800 Inconel Coils
- 800 Alloy Coils
- Inconel UNS N08800 Coils
- Inconel WERKSTOFF NR. 1.4876 Coils
- ASTM / ASME SB409 Inconel 800 Coils
- Inconel 800 Strips
- Alloy 800 Strips
- 800 Inconel Strips
- 800 Alloy Strips
- Inconel UNS N08800 Strips
- Inconel WERKSTOFF NR. 1.4876 Strips
- ASME SB409 Inconel 800 Strips
For Inconel 800 Sheets, Plates & Coils price list as on :
Request the latest Inconel 800 Sheets, Plates & Coils Price List. Use the contact button below for Inconel 800 Sheets, Plates & Coils Ready stock information and updated price list.
Inconel 800 Sheets, Plates & Coils Applications
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
Inconel 800 Sheets, Plates & Coils Manufacturer & Supplier
- Inconel 800 Sheets, Plates & Coils manufacturer in india
- Inconel 800 Sheets, Plates & Coils supplier in india
- Inconel 800 Sheets, Plates & Coils manufacturer in Mumbai
- Inconel 800 Sheets, Plates & Coils manufacturer in Pune
- Inconel 800 Sheets, Plates & Coils supplier in Chennai
- Inconel 800 Sheets, Plates & Coils manufacturer in Hyderabad
